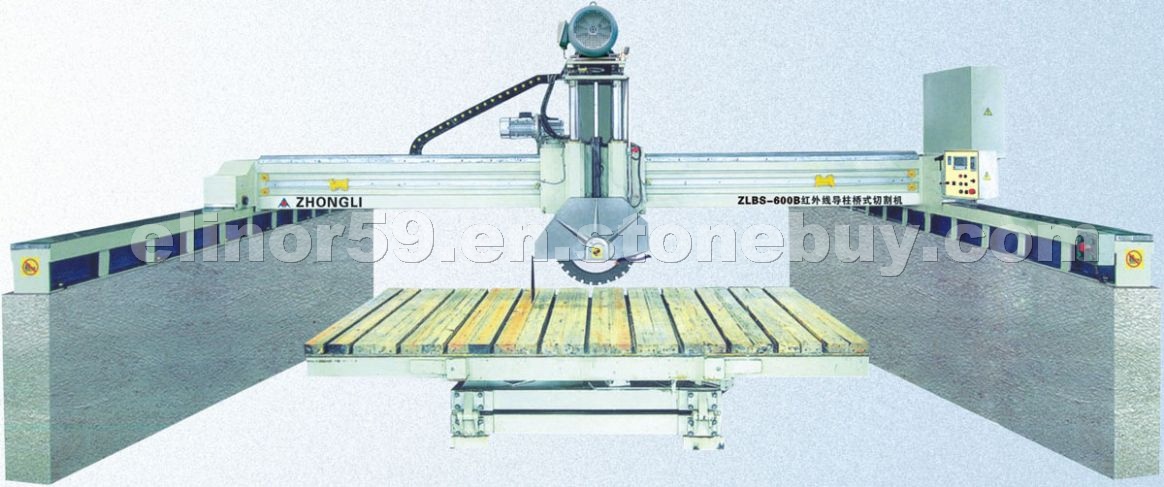

Infrared Guide Pole Bridge Cutting Machine ZLBS-60

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1466752

• Place of Origin:

  China
• Type ZLBS-600B Infrared Guide Pole Bridge Cutting Machine
  This machine is one of the newest bridge cutting machine our company recently developed, is specialy degigned for the cutting of the granite, marble boards. Adopt four guide poles structure, double oil jar to control the lift and fall of the machine head. It has the characteristics of less abrasion, strong stability and other advantages. Its main components (PLC control system and transducer) are provided by Mitsubishi and the magnet ruler which imported from Germany insure a high precision of the slice cutting. The workbenchi can rotate 90 degree and can tilting 85 degree, very convenient for the processing board loading.(linearity guide rails and the workbench rotate 360 degree are for optional)
  Parameter:
  Max. diameter of sawbit 600mm
  Dimensions of working platform 3200×2000mm
  Max. cutting size 3200×3200×190mm
  Table Tilting degree 0-85°
  Table rotating degree 0-360°
  Power of main motor 18.5kw
  Water consumption 4m3/h
  Gross weight 6800kg
  Machine dimension 6000×5000×2800mm
